April 1

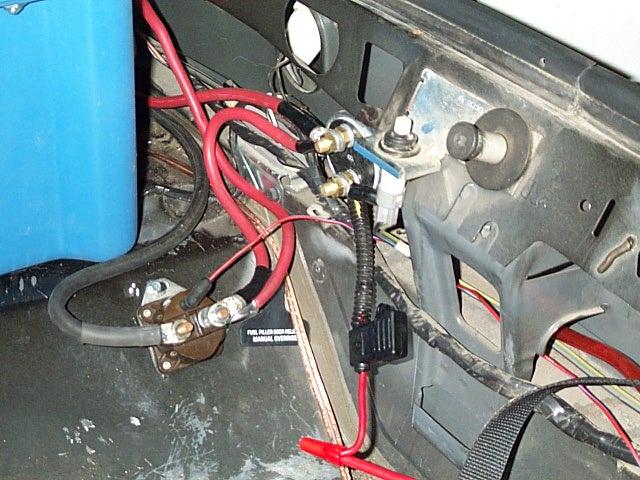

Here is the finished wiring in the rear. This is per NHRA rules, when the switch is thrown, the car is DEAD.

-J




April 5

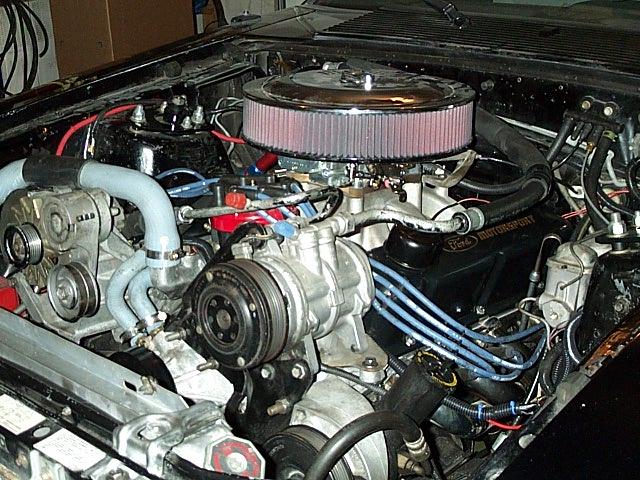

This pic of the engine bay is the car nearing completion. I have one more wiring harness to finish, and then pick up a insulated stud like they used on the Shelby's, to give the power back to the front. I temporarily attached the power lead to the others, with a bolt, and checked to be sure everything was working. It was. I am happy :) I even cranked it over. It is quite strange to hear the solenoid click BEHIND you, but very cool at the same time.

-J






April 6

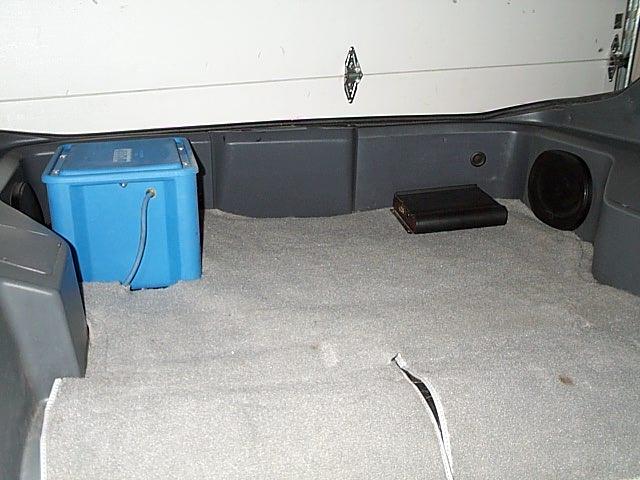

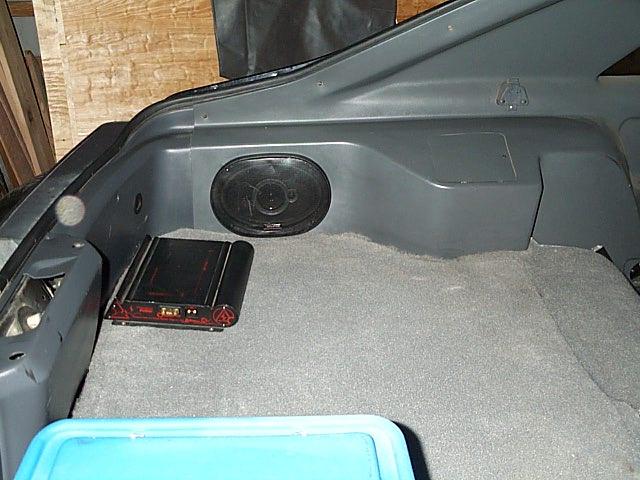

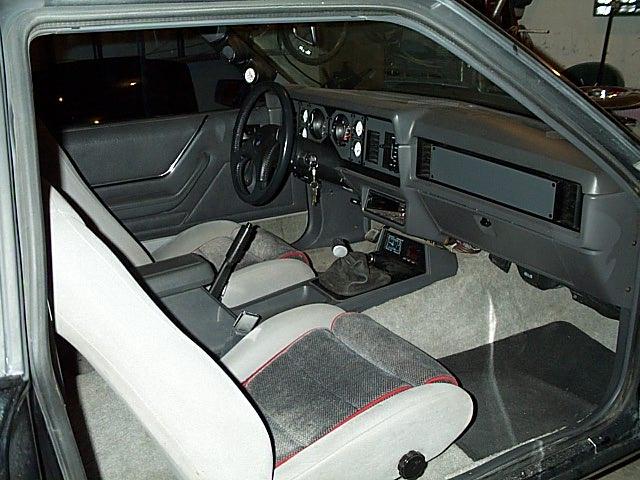

The interior is back together. Here are some pics to compare and contrast against. Especially the last one.
-J
